RDP Software -
BridgePro
The
RDP BridgePro software was developed to analyze GPR bridge deck data.
This software can operate independently and detect bridge deck
delamination automatically or with user assistance. BridgePro
analyzes IRIS GPR bridge deck data and identifies special signal features
that are related to concrete distress. The software employs a proprietary
set of delamination descriminants to detect concrete deterioration based
on SHRP C-101 research conducted by Penetradar Corporation as
described in AASHTO TP-36 and ASTM D6087 standards.
Delamination results are presented as plan view maps of the bridge deck
depicting GPR scans versus inspection distance, with locations of
delaminations shown in a colorized, topographical format. An array of
flexible features are provided that allow a user to format the map, adjust
colors, threshold levels, map size and other features necessary for
display, output presentation and report generation. Delamination and
deterioration maps can also be stored in a Windows bitmap (.bmp) file
format that can then be exported to other graphics software for additional
editing and display. Asphalt overlay thickness and reinforcing steel depth
measurements can be exported as an ASCII data file, printed as a formatted
table or displayed in a colorized topographical format. Other outputs that
are generated by the BridgePro application include a 3D chart
showing the percentage and area of delamination of the inspected bridge
deck and a summary file for the inspection survey.
________________________________________________________________________
|
|

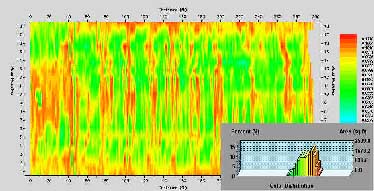

The BridgePro radar data
processing (RDP) software analyzes bridge deck data and generates a
plan view bridge map depicting locations of delaminations and
deterioration in a color topographical format.
|
|
 |
|
