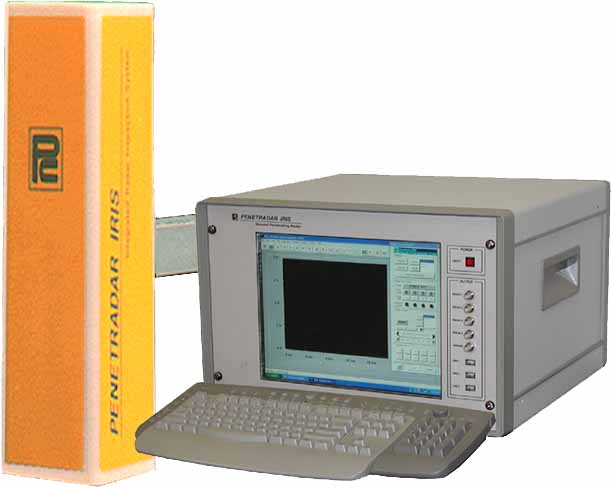

IRIS and 30AGC Non-Contacting Horn Antenna

Description

The Penetradar Integrated Radar Inspection System (IRIS) is a high speed, four channel  ground penetrating radar developed for non-destructive inspection of highway pavement, bridge deck structures, tunnels, airport runways and concrete structures.The IRIS consists of a digital GPR control unit and real-time data acquistion-processing system with high intensity 15 Inch SVGA data display, touch screen control and large internal hard disk storage. The IRIS combines GPR hardware and software into an integrated and highly automated, turn-key inspection system that requires little knowledge of radar signal interpretation to operate effectively.

Designed for use at speeds of 60 MPH (100KM/H) the IRIS “sees” through asphalt and concrete pavement, and bridge deck structures, automatically acquiring and storing digitized radar data on hard disk for display and analysis.

The IRIS digital GPR control unit was designed to operate with all of Penetradar antennas and IRIS software. Standard features of the IRIS include DMI input for distance tagging, GPS port and three USB data ports for data download and connection of peripherials.

(IRIS Brochure)

Features

Designed for high speed bridge deck,  pavement and tunnel inspection applications.

Operates with up to four antennas (six antennas optional) simultaneously

Large 15 inch LCD Touchscreen Display

GPS Compatible

Uses include the detection of deteriorated concrete, measurement of asphalt and concrete thickness, detection of voids and moisture accumulation.

Advanced Data Acquisition and Processing software providing quantitative output in graphic and numerical format.

Rugged design for vehicular installation. (Rackmounted version available)
