IRIS GPR Systems



The IRIS and IRIS-P are advanced ground penetrating radar based systems. They were developed to be used with all of Penetradar's air-coupled and contacting antennas, and with the selection of the required antenna and software, the IRIS & IRIS-P becomes an application specific tool for:

                 Highway Pavement & Bridge Decks
                 Tunnels
                 Concrete Inspection
                 Depth of Reinforcing steel
                 Parking Ramps
                 Underground Storage Tanks (UST's)
                 Utility Lines
                 Detection of Old Foundations
                 and more...

IRIS - Designed for use at speeds of 60+MPH (100KM/H) the IRIS "sees" through asphalt and concrete pavement, and bridge deck or tunnel structures, acquiring and storing digitized radar data on its internal hard disk in real-time for subsequent processing and display. Signal analysis is automatic or computer assisted for manual analysis. The IRIS produces numerical and graphical data outputs that are easily understood and hardcopy mappings of bridge deck deterioration and pavement thickness profiles. The IRIS can be configured with up to four antennas (six antennas in special cases) and is typically installed in a vehicle.

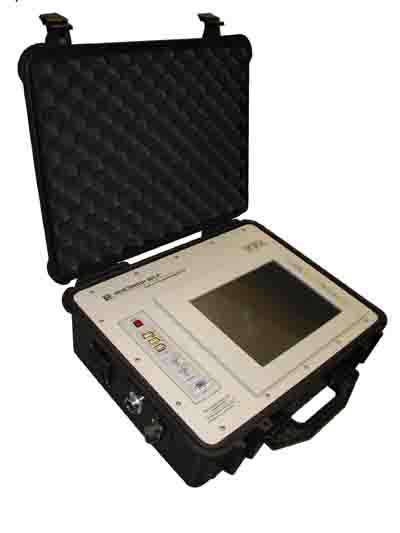

IRIS-P - Designed as a low cost, single channel GPR system, the IRIS-P is a stand alone unit for site surveys. It is enclosed in a ruggedized carrying case for mobility and includes a high visibility, sunlight readable, touchscreen LCD.


 IRIS
     IRIS Version P (Portable)










IRIS    High Speed, Multiple Antenna


  • Digital data acquisition & storage

  • Installed with up to 6 air-coupled or ground coupled antennas

  • Operates at highway speed

  • Easy to operate with a 15 inch touch screen LCD

  • Compatible with IRIS Software for Windows

              more





IRIS-P   Portable GPR System
  • Digital data acquisition & storage

  • Single antenna system using one air-coupled or contacting antennas

  • Sunlight readable 12 inch touch screen LCD

  • Compatible with IRIS Software for Windows

              more
